Output power: 200W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~60℃
Heat dissipation method: Natural cooling
Storing temperature: -40~80℃
Input voltage: 100-240Vac,47-63Hz
Insulation Voltage: I/P-O/P:3.0KVac; I/P-FG: 1.5KVac; O/P-FG:0.5KVac
Safety Standard: GB4943,EN60950
Protection: Input under-voltage protection, Overload Protection (OLP), Output short circuit protection
Efficiency factor: 0.95@230Vac
Dimention L*W*H (mm): 208×60×30±0.5
| Model NO. |
Category |
Output Volt. | Output current | Ripples | Efficiency |
|---|---|---|---|---|---|

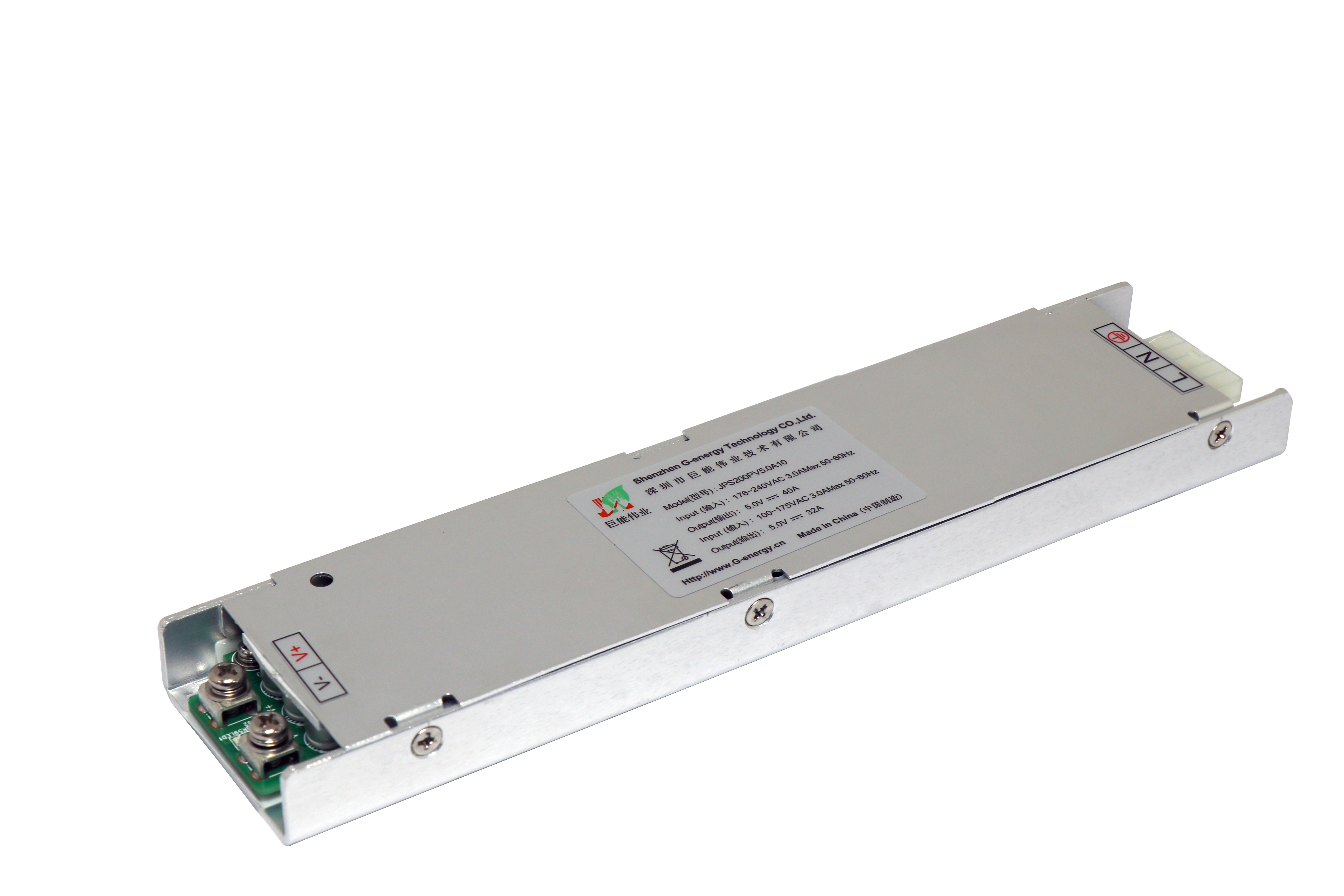

| JPS200PV5.0-N | Constant Voltage | 5V DC | 40A | ≤150mV | ≥88% |
