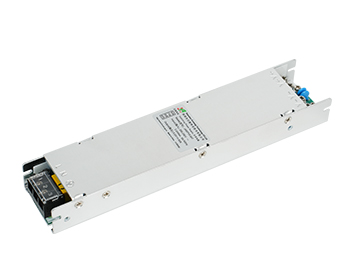

J400PV5.0A7
Output power: 400W Max
Input voltage: 200-240Vac,47-63Hz
Leakage Current: <1ma(Vin:230)
Working Temperature: -30℃~60℃
Heat dissipation method: Natural cooling
Storing temperature: -40~80℃
Protection: Input under-voltage protection, Output short circuit protection,Output current limiting protection point,over-temperature protection
Efficiency factor: 0.95@230Vac
Dimension L*W*H (mm): 220×47×26±0.5

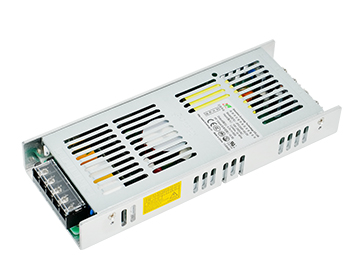

JPS300P-A5.0V
Output power: 300W Max
Leakage Current:≤1 (Vin=230Vac)
Working Temperature: -30℃-60℃
Heat dissipation method: Natural cooling
Storing temperature: -40~85℃
Input voltage: 100-240Vac,50/60Hz
Protection: Input under-voltage protection,Input under-voltage recovery point,Output current limiting protection point,Output short circuit protection
Efficiency factor:≥0 .95
Dimension L*W*H (mm): ==213×85×30±0.5.mm

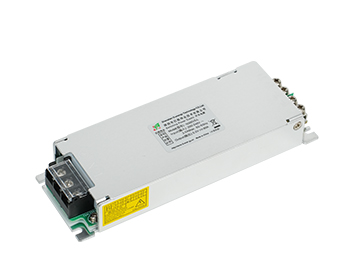

N300V5-L
Output power: 300W Max
Leakage Current:＜1(Vin=230Vac)
Working Temperature: -40℃-70℃
Heat dissipation method: Natural cooling
Storing temperature: -40~85℃
Input voltage: 200-240Vac,50/60Hz
Protection: Input under-voltage protection,Input under-voltage recovery point,Output current limiting protection point,Output short circuit protection, over temperature protection
Efficiency factor:≥0 .40
Dimension L*W*H (mm): =165×56×26±0.5.mm

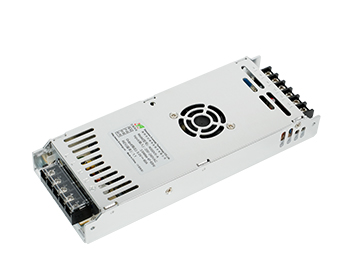

N300V5-A
Output power: 300W Max
Leakage Current:＜3.0(Vin=230Vac)
Working Temperature: -30℃-50℃
Heat dissipation method: Fan cooling
Storing temperature: -40~80℃
Input voltage: 200-240Vac,47-63Hz
Protection: Input under-voltage protection,Input under-voltage recovery point,Output current limiting protection point,Output short circuit protection
Efficiency factor:≥0 .45
Dimension L*W*H (mm): =212×81.5×30.5±0.5.mm

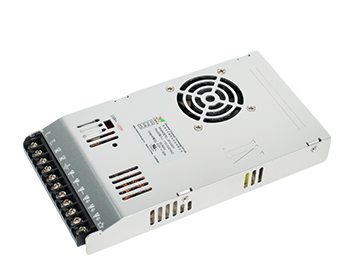

JPS300V
Output power: 300W Max
Leakage Current:＜3.0(Vin=230Vac)
Working Temperature: -30℃-50℃
Heat dissipation method: Fan cooling
Storing temperature: -40~80℃
Input voltage: 100-220Vac,47-63Hz
Protection: Input under-voltage protection,Input under-voltage recovery point,Output current limiting protection point,Output short circuit protection
Efficiency factor:≥0 .45
Dimension L*W*H (mm): =217×117×30±0.5mm

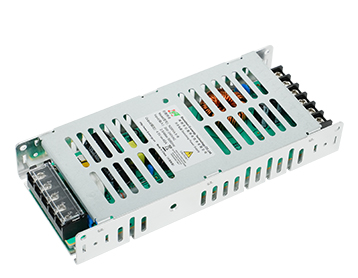

N200V4.5-B
Output power: 200W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~50℃
Heat dissipation method: Natural cooling
Storing temperature: -40~80℃
Input voltage: 200-240Vac,47-63Hz
Protection: Input under-voltage protection, Output short circuit protection, Input under-voltage recovery point,Output current limiting protection point
Efficiency factor: 0.45@230Vac
Dimention L*W*H (mm): 190×82×30±0.5

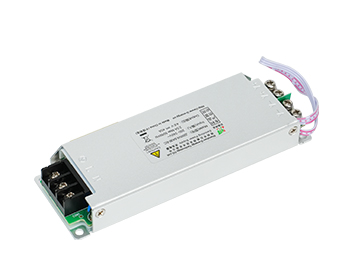

J200V4.6A36-EC
Output power: 184W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~70℃
Heat dissipation method: Natural cooling
Storing temperature: -40~85℃
Input voltage: 200-240Vac,47-63Hz
Protection: Input under-voltage protection,Output short circuit protection,Input under-voltage recovery point,Output current limiting protection point
Efficiency factor: 0.5@230Vac
Dimention L*W*H (mm): 150×50×19.5±0.5

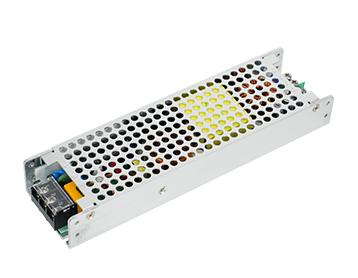

JPS300PV5 .0A6
Output power: 300W Max
Leakage Current:≤1(Vin=230Vac)
Working Temperature: -40℃-70℃
Heat dissipation method: Natural cooling
Storing temperature: -40~85℃
Input voltage: 100-240Vac,47-63Hz
Protection: Input under-voltage protection,Input under-voltage recovery point,Output current limiting protection point,Output short circuit protection,Overheated protection
Efficiency factor:≥0 .95
Dimension L*W*H (mm): =208×59×30±0 .5mm

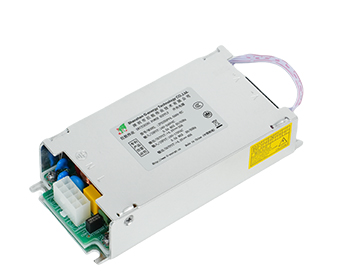

JPS250PV4.5A8A-EC
Output power: 225W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~50℃
Heat dissipation method: Natural cooling
Storing temperature: -40~80℃
Input voltage: 100-240Vac,47-63Hz
Insulation Voltage: I/P-O/P:3.0KVac; I/P-FG: 1.5KVac; O/P-FG:0.5KVac
Safety Standard: GB4943,EN60950
Protection: Input under-voltage protection, Input under-voltage recovery point,Output current limiting protection point
Efficiency factor: 0.95@230Vac
Dimention L*W*H (mm): 145×68×30±0.5
JPS200PV4.5A27A-EC
Output power: 200W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~50℃
Heat dissipation method: Natural cooling
Storing temperature: -40~85℃
Input voltage: 100-240Vac,47-63Hz
Insulation Voltage: I/P-O/P:3.0KVac; I/P-FG: 1.5KVac; O/P-FG:0.5KVac
Safety Standard: GB4943,EN60950
Protection: Input under-voltage protection, Overload Protection (OLP), Output short circuit protection
Efficiency factor: 0.95@230Vac
Dimention L*W*H (mm): 145×68×30±0.5
