N200V4.5-B
Output power: 200W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~50℃
Heat dissipation method: Natural cooling
Storing temperature: -40~80℃
Input voltage: 200-240Vac,47-63Hz
Protection: Input under-voltage protection, Output short circuit protection, Input under-voltage recovery point,Output current limiting protection point
Efficiency factor: 0.45@230Vac
Dimention L*W*H (mm): 190×82×30±0.5
J200V4.6A36-EC
Output power: 184W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~70℃
Heat dissipation method: Natural cooling
Storing temperature: -40~85℃
Input voltage: 200-240Vac,47-63Hz
Protection: Input under-voltage protection,Output short circuit protection,Input under-voltage recovery point,Output current limiting protection point
Efficiency factor: 0.5@230Vac
Dimention L*W*H (mm): 150×50×19.5±0.5

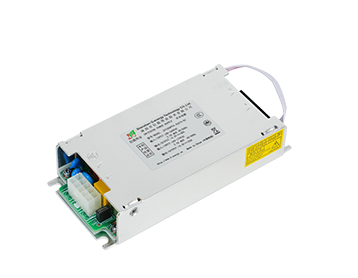

JPS200PV4.5A27A-EC
Output power: 200W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~50℃
Heat dissipation method: Natural cooling
Storing temperature: -40~85℃
Input voltage: 100-240Vac,47-63Hz
Insulation Voltage: I/P-O/P:3.0KVac; I/P-FG: 1.5KVac; O/P-FG:0.5KVac
Safety Standard: GB4943,EN60950
Protection: Input under-voltage protection, Overload Protection (OLP), Output short circuit protection
Efficiency factor: 0.95@230Vac
Dimention L*W*H (mm): 145×68×30±0.5

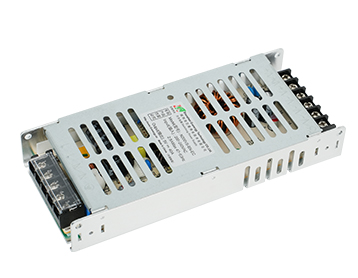

N200V5-BN-EC
Output power: 200W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~60℃
Heat dissipation method: Natural cooling
Storing temperature: -40~80℃
Input voltage: 200-240Vac,47-63Hz
Protection: Input under-voltage protection, Input under-voltage recovery point,Output current limiting protection point
Efficiency factor: 0.5@230Vac
Dimention L*W*H (mm): 190×82×30±0.5

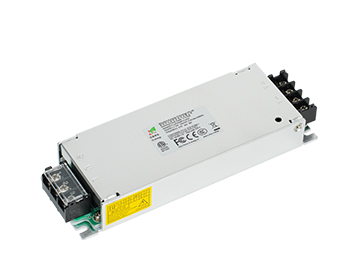

JPS200PV5.0A31
Output power: 200W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~60℃
Heat dissipation method: Natural cooling
Storing temperature: -40~85℃
Input voltage: 100-240Vac,47-63Hz
Insulation Voltage: I/P-O/P:3.0KVac; I/P-FG: 1.5KVac; O/P-FG:0.5KVac
Safety Standard: GB4943,EN60950
Protection: Input under-voltage protection, Output short circuit protection, Input under-voltage recovery point,Output current limiting protection point
Efficiency factor: 0.95@230Vac
Dimention L*W*H (mm): 165×56×26±0.5

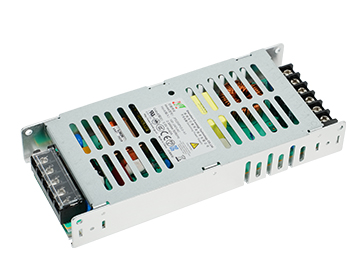

JPS200PV5.0-A1
Output power: 200W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~60℃
Heat dissipation method: Natural cooling
Storing temperature: -40~80℃
Input voltage: 100-240Vac,47-63Hz
Insulation Voltage: I/P-O/P:3.0KVac; I/P-FG: 1.5KVac; O/P-FG:0.5KVac
Safety Standard: GB4943,EN60950
Protection: Input under-voltage protection, Output short circuit protection,Input under-voltage recovery point,Output current limiting protection point
Efficiency factor: 0.95@230Vac
Dimention L*W*H (mm): 190×82×30±0.5

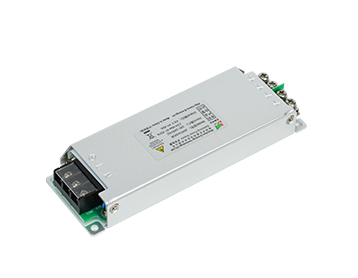

J200V4.6A36
Output power: 200W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~60℃
Heat dissipation method: Natural cooling
Storing temperature: -40~85℃
Input voltage: 200-240Vac,47-63Hz
Protection: Input under-voltage protection, Output short circuit protection,Input under-voltage recovery point,Output current limiting protection point
Efficiency factor: 0.5@230Vac
Dimention L*W*H (mm): 150×50×19.5±0.5

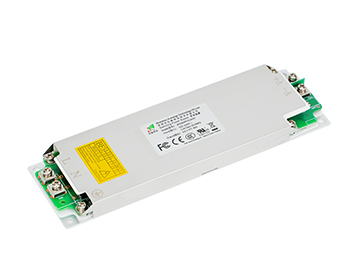

JPS200PV5.0A70
Certificates: FCC UL CE RoHS CCC
Output power: 200W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~60℃
Heat dissipation method: Natural cooling
Storing temperature: -40~85℃
Input voltage: 100-240Vac,47-63Hz
Protection: Input under-voltage protection, Input under-voltage recovery point,Output current limiting protection point
Efficiency factor: 0.95@230Vac
Dimention L*W*H (mm): 170×50×13±1.0

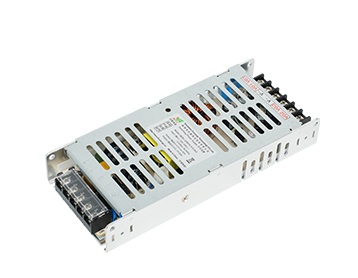

J200V4.0-3.0A3
Output power: 200W Max
Leakage Current: <1mA(Vin:230)
Working Temperature: -30℃~60℃
Heat dissipation method: Natural cooling
Storing temperature: -40~80℃
Input voltage: 240-240Vac,47-63Hz
Insulation Voltage: I/P-O/P:3.0KVac; I/P-FG: 1.5KVac; O/P-FG:0.5KVac
Safety Standard: GB4943,EN60950
Protection: Input under-voltage protection, Output short circuit protection, Input under-voltage recovery point,Output current limiting protection point
Efficiency factor: 0.5@230Vac
Dimension L*W*H (mm): 190×82×30±0.5
